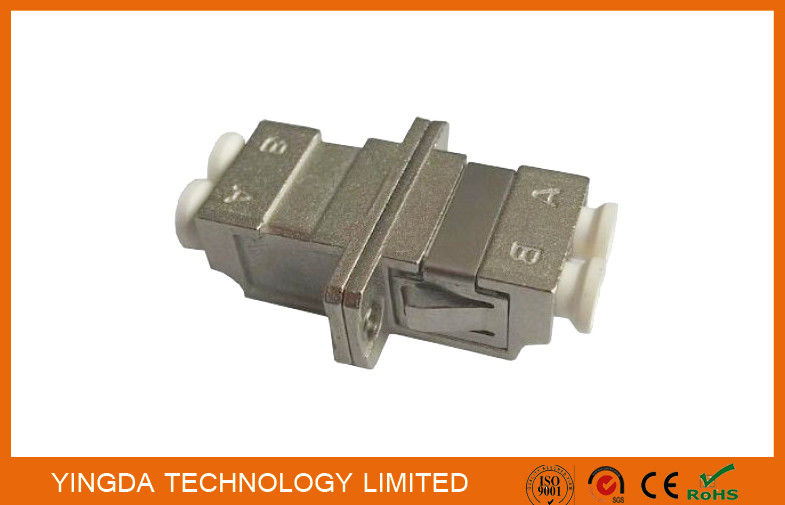

High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing
  • Nama
  • Nama
  • Nama
  • Nama
  • Nama

High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing

MOQ: 10PCS
harga: 0.04USD-2.15USD
Kemasan standar: 25PCS / BOX
Informasi Rinci
Deskripsi Produk
Peringkat & Ulasan
Informasi Rinci
Tempat asal
Cina
Nama merek
YINGDA
Sertifikasi
iso
Model Number
LC duplex
MATERIAL:
metal
dust cap color:
white
type:
metal adapter
shape:
SC footprint LC duplex adaptor
fiber mode:
single mode,multimode
insertion loss:
< 0.2. dB
warranty:
2 years
temperature:
-40 to +85 degree
Nama produk:
kabel mpo ke mpo, kabel mpo ke lc, konektor optik mtp, kaset mtp
Menyoroti:

serat optik coupler

,

adapter serat telanjang

Deskripsi Produk

High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing





Features:

  1. Low insertion loss, high return loss
  2. Good compatibility
  3. High precision of mechanical dimensions
  4. High reliability & stability
  5. Both eramic and Bronze Sleeve are available
  6. PC,APC,UPC optional
  7. Duplex
  8. Metal housing



Application:

  • Local Area Network
  • CATV System
  • Telecommunication Networks
  • Equipment Test Specification:



Specification:



Parameter

Unit

LC-LC Duplex

SM/ MM

PC/UPC/APC

Insertion Loss (Typical)

dB

≤0.2

Return Loss

dB

≥60

Exchangeability

dB

≤0.2

Repeatability

dB

≤0.2

Durability

Time

>1000

Operating Temperature

°C

-40~75

Storage Temperature

°C

-45~85



High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing 0High Return Loss Couler LC LC Duplex Optical Fiber Adapter Silver Metal Housing 1
