|color:||white or black||max capacity:||16fibers|
|max split:||2x 1:8 plc splitter||max splice:||16fibers|
|adapter:||sc , fc coupler||material:||PC+aBS|
|cable ports:||4in,16out||working temperature:||-40 +80℃|
|fiber type:||singlemode, multimode||tensile strength:||>20N|
|application:||3.0*2mm drop cable or indoor cable|
Ftth 16 Cores Fiber Distribution Box With Sc Apc Adapter, IP65 Fiber Optic Splitter Box
ODP FDB0216W type Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
1.Total enclosed structure.
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4.Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Optical Distribution Box Structure
|1||Lid||8||Loop ring||15||Grounding bracket|
|2||base||09||Flap fixed bracket||16||Waterproof blocker|
|3||Connecting screw||10||C type Flip plate||17||Cable exit mat|
|4||Rubber seal||11||B type Flip plate||18||E type link-2|
|5||Lock bolt||12||A type flip plate||19||E type link-1 cable ways|
|6||Door clip||13||Flip bracket|
|7||Door clip connecting bracket||14||Fiber fixer|
|Max capacity||1x8 micro mini plc splitter 2pcs|
|SC adapter 16pieces|
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover

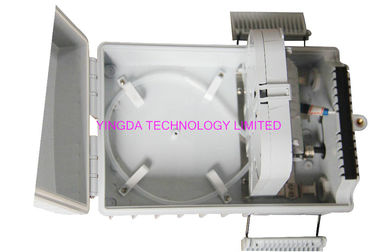

More pictures show:

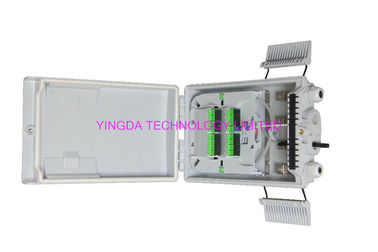

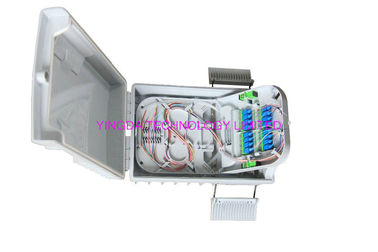

this box can do max 16pcs SC/UPC ,SC/APC adapters in 2 lines, and 2pcs 1X8 PLC Splitter Steel tube type.

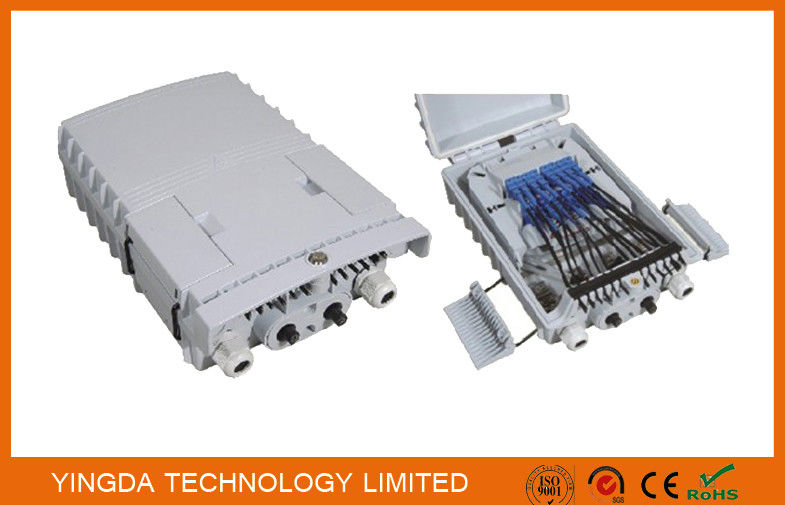

Box is self-clip design,high strength, good protection to fiber and cables.

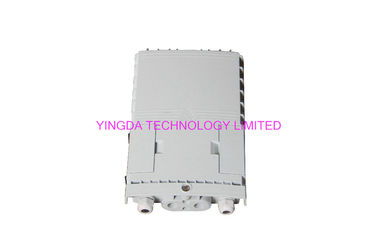

white color Fiber Optic Termination Box Black color Fiber Optic Splitter Box 16cores
