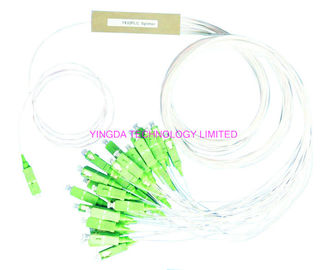

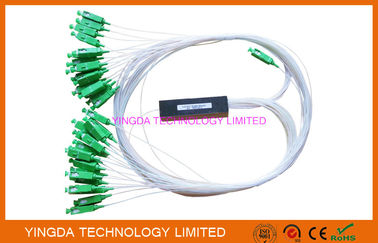

FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard

  • FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard
  • FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard
  • FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard
  • FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard
  • FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard
Tempat asal Cina
Nama merek YINGDA
Sertifikasi ISO
Nomor model 1x32 optical splitter
Kuantitas min Order 100 pcs
Harga negotiable
Kemasan rincian 1pc/ box, 20pcs/carton box
Waktu pengiriman 5-8days after payment
Syarat-syarat pembayaran Western Union, T/T, MoneyGram
Menyediakan kemampuan 10,000 pcs per month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
split ratio 1*32 connector SC/APC
fiber type singlemode G657A1 insertion loss 16.5dB
Uniformity (Max.) <1.3dB wavelength 1260 - 1650 nm
PDL(Max.) 0.3dB Standard Telcordia GR-1221 and GR-1209
steel tube 80×20×6mm
Cahaya Tinggi

Fiber Optic Splitter

,

fbt coupler
Tinggalkan pesan
Deskripsi Produk

FTTH Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard





YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



PLC SPLITTER 1X32 STRUCTURE

FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 0





Features

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability



Applications

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution



Compliance

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

RoHS



Specifications



Parameters 1×32
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 16.5/16.9
Loss Uniformity (dB) 1.5
Polarization Dependent Loss(dB) 0.3
Return Loss (dB)(P/S Grade) 55/50
Directivity (dB) 55
Wavelength Dependent Loss (dB) 0.5

Temperature Stability

(-40~85 ℃)(dB)

 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 50×7×4
Module Dimension (mm) 140×115×18
Mini-Module Dimension (mm) 80×20×6



Notes:

1. Specified without connectors.

2. IL will be 0.15dB higher with connectors.





Product details



steel tube can include: product name, seral number or logo, and the input and output color, length,connector types can be customized.



FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 1FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 2



each splitter will test after add connectors before delivery.



FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 3FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard 4





Yingda Produce All Kinds Of Fbt Couplers And Plc Splitters From 1xn To 2xn Series..

For more details, pls send mail to us at: sales@ydpcable.com   contact: sophie wang
