Multimode ST Female To Male Fiber Optic Attenuator 1dB 2dB 3dB 5dB 7dB 20dB
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xAttenuation | 1dB, 2dB, 3dB, 5dB, 10dB, 7dB, 15dB, 20dB,etc | test wavelength | 1310nm /1550nm |
---|---|---|---|
body material | metal | Additional loss | 0.1dB |
Working temperature | -40~+75 (℃) | Fiber optic type | single-mode,multimode |
industry standard | Telcordia TA-NWT-001209 | connector type | SC FC LC ST E2000 MU |
dust cap color | red | connector shape | plug-in type |
Cahaya Tinggi | build out attenuator,optical fiber attenuator |

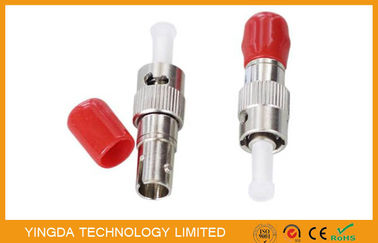

ST Attenuator Female To Male,1dB, 2dB, 3dB, 5dB, 7dB, 20dB Build Out Atenuator
Description
ST Build out fix Optical fiber attenuator is made of high precision standard dust. Refined. It use for
a variety of optical fiber transmission line, high precision attenuation, stable and reliable performance.
Performance characteristics have no relationship with wavelength change, can realize the adapter
and attenuator both functions.
Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical
fiber network system, the low speed optical fiber transmission system.
Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable
(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..
From the microwave network point of view, attenuator is a two port lossy microwave networks.
It belongs to pass type microwave components.
Main application
(1) to control the power level: the output power of the vibration control in microwave super heterodyne
receiver, to get the best noise coefficient and frequency conversion loss, then get the best reception.
In the microwave receiver, automatic gain control, improve dynamic range.
(2) decoupling components: as to the coupling element between the oscillator and the load.
(3) the relative standard: as a comparison of the relative standard of power level.
(4) jump attenuator in radar anti jamming: it is a variable attenuator whose attenuation value can
mutate, usually without introducing attenuation, encountered outside interference, a sudden
increase in attenuation.
Main features
- Made of attenuation optical fiber, excellent performance
- Simple structure, compact size, easy to install
- Stable performance, high reliability
- Suitable for 1260 ~ 1650nm wide wavelength
- High reflection loss, low insertion loss
Specification
Item |
Standard |
Wavelength Flattened |
Broadband |
Operating Wavelength(nm) |
1310 or 1550 |
1310/1550 |
|
Bandwidth(nm) |
±20 |
±40 |
|
Attenuation value (dB) |
1~30 |
||
Return Loss (dB) |
≥40 |
||
Operating Temperature oC |
-40~+85 |
||
Storage Temperature oC |
-40~+85 |
||
Industry Standard |
Telcordia TA-NWT-001209 |
ST female to male plut-in type attenuator multimode, dust cap color: yellow
ST female to male plut-in type attenuator single mode, dust cap color: red
ST female to female adapter type attenuator:
