SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xFiber count | simplex adapter | connector material | plastic |
---|---|---|---|
adapter color | green | sleeve material | ceramic |
fiber type | singlemode | polish mode | APC |
insetion loss | < 0.2dB | house material | ABS |
connector | SC | shutter material | plastic transparent |
Cahaya Tinggi | serat optik coupler,serat optik adaptor |

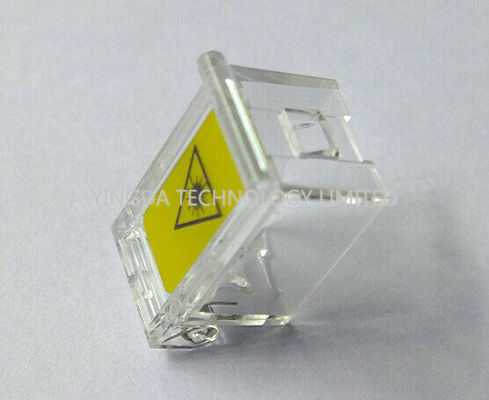

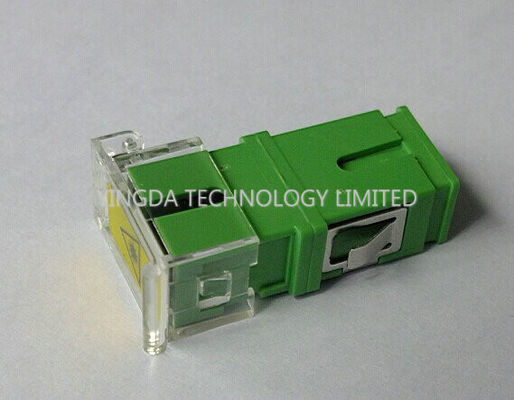

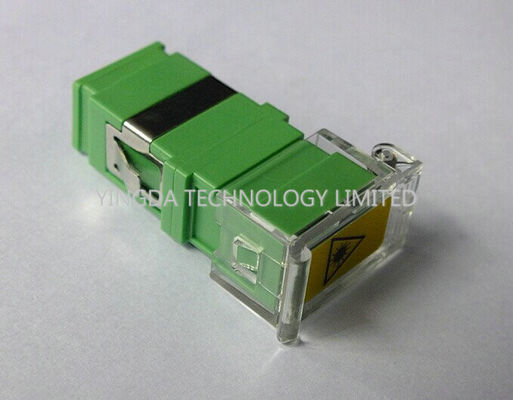

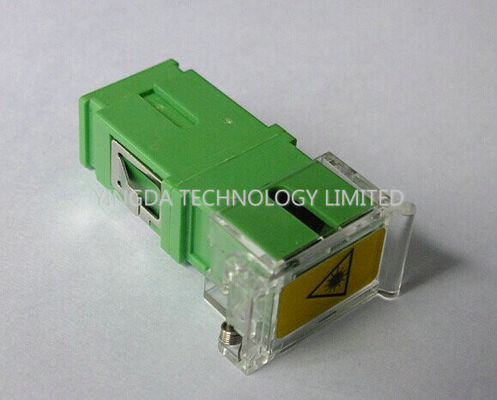

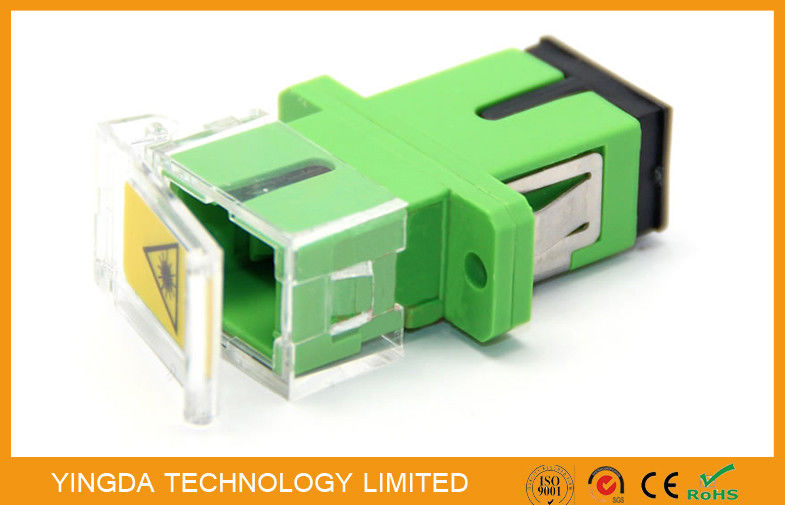

SC Fiber Optic Adapter With Shutter Transparent Plastic, SC Shutter Adapter Back Cover
SC simplex fiber optic shutter adaptors are specially designed to suit FTTH applications. The shutters
are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered
adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the
same precision and optical performance as the normal adapter.
YINGDA shutter adapters are available in SC simplex/duplex and LC duplex/quad designs. They are
available with zirconia or phosphor bronze alignment sleeves in flange or flangeless body types.
The connector color can be blue, green, gray or aqua. It is used to align and join two or more
fiber-optic connection, to ensure alignment of two fiber-optic connections.
Features
- Compliant with: ANSI, Bellcore, TIA/EIA standards
- Dust caps protect against debris and contamination
- Low insertion <0.2dB
- high return loss >55dB
- Active device termination
Specification
Characteristics |
Conditions |
Values |
Durability |
500times |
<0.2dB |
Temperature Cycling |
-40 ~ +80℃ (42Cycles) |
<0.2dB |
Humidity Cycling |
75℃, 95%/336hr |
<0.2dB |
Vibration |
10~55Hz(2hr) |
<0.2dB |
Impact |
1.5m drop, 8times |
<0.2dB |
Application
- Telecommunication
- CATV
- Data Communications
- Instrumentation
- Local Area Networks
Order information
Connetor type |
SC, LC |
Cable type |
SM, OM1, OM2, OM3, OM4 |
Fiber count |
Simplex, duplex, quad |
Sleeve |
Ceramic, Phosphor bronze |
Connector color |
Blue, green, beige, aqua, purple |
Shutter material |
Plastic, metal |
Polish method |
UPC, PC, APC |
