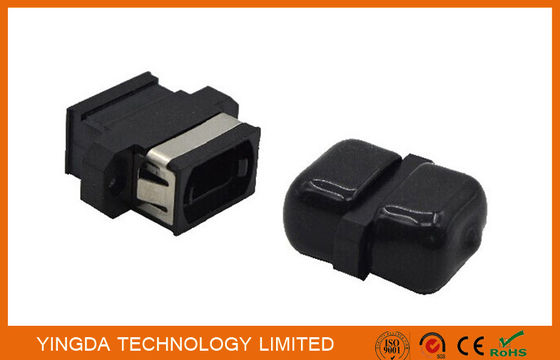

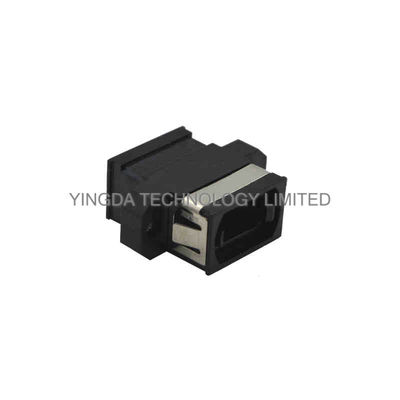

SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xcolor | Black | material | plastic PC / ABS |
---|---|---|---|
connector | MPO / MTP adaptor | fiber count | 12 fiber / 24 fibers |
Cahaya Tinggi | serat optik adaptor,adapter serat telanjang |
SC Footprint 12 Core Mpo / Mtp Multi Mode Fiber Adapter Coupler Flange Connector
Features
- Compact size, precise design,
- guarantee high - density optical fiber docking,
- low insertion loss
Application
- MPO or MTP fiber jumper / pigtail connection, docking
The fiber optic adapter is usually called the flange coupler, which is mainly used for the connection
between the optical fiber connector and the fixation, so that the optical signal can be transmitted
with a small insertion loss.
YINGDA MPO fiber optic adapter connetion is different with the simplex SC adapter, SC fiber optic
adapter has ceramic sleeve inside, which makes the core connection for precise alignment, but
MPO adapter connect according to the end surface 2pcs guide hole and guid pin whose diameter
is 0.7mm. So MPO adapter don't have singlemode or multimode, but SC fiber optic adapter have
due to different sleeve. MPO adapter is widely used in communication system base station, building
room fiber distribution (ODF), MPO box, a variety of test instruments.
12/24 core single mode multimode general use MPO/MTP fiber adapter is the manufacturer sell
direct, standard delivery time:2days -3days. Color can be customized according to customer
requirements, non quality problems do not accept returns, specific problems please contact
customer service online or telephone: 18688982406 to make order or consult. We will take
the highest quality service, the quickest technical support to help the parents complete the order.
Specification
Connector |
MPO / MTP |
Color |
Black / aqua |
Test wavelength |
1310nm, 1550nm, 850nm, 1300nm |
Insertion loss |
typical<0.20dB, maximum< 0.30dB |
Repeat ability |
≤0.10dB |
Interchangeable |
≤0.20dB |
Plug performance |
Plug 500, <0.20dB |
Adapter material |
Plastic PC |
Working temperature |
0℃ to +70℃ |
Storage temperature |
-40℃ to +85℃ |
